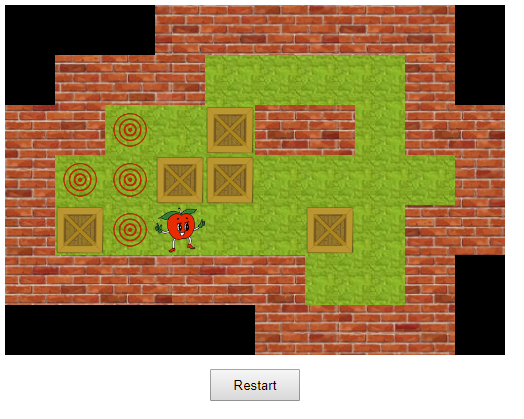

实现效果

推箱子是一款风靡已久的益智小游戏，如何在网页实现推箱子功能？这就不得不说我们html5新增的canvas功能，让我们能对图片等资源可以更好的绘制。

设计思路

素材

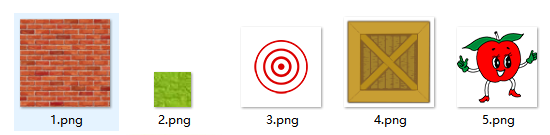

首先我们应该拥有设计素材，博主木有嗷~所以在网上找了一些合适的素材。分别代表墙、草地、应该被推入的位置标志、箱子和我们的人物，如下图。

实现思路

  1. 生成背景图

对于页面的显示，我们使用像素化的表示方式。如上图，一个正方块为假设为一个单元，我们的实现图就是一个10 * 7 的地图，我们可以用二维数组来表示它：0表示无，1表示隔离，2表示空地，3表示目标，4表示箱子，5表示当前位置。

1
2
3
4
5
6
7
8
// 我们的初始地图可以表示为：
[[0,0,0,1,1,1,1,1,1,0],
 [0,1,1,1,2,2,2,2,1,0],
 [1,1,3,2,4,1,1,2,1,1],
 [1,3,3,4,2,4,2,2,5,1],
 [1,3,3,2,4,2,4,2,1,1],
 [1,1,1,1,1,1,2,2,1,0],
 [0,0,0,0,0,1,1,1,1,0]];

我们生成一个Sokoban对象，用来记录我们的推箱子一个地图的所有内容：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
var Sokoban = function(boxContext,width,height) {
    this.context = boxContext;  //存储canvas的 ctx 对象
    this.width = width;
    this.height = height;
    this.curLoc = {x:8,y:3}; //是箱子初始的位置
    this.targetLoc = [{x:1,y:3},{x:1,y:4},{x:2,y:2},{x:2,y:3},{x:2,y:4}]; //是应该把箱子推入的位置
    this.imgArray = [new Image(),new Image(),new Image(),new Image(),new Image()]; //我们填充地图的图片资源，现在没有给src
    //0表示无，1表示隔离，2表示空地，3表示目标，4表示箱子，5表示当前位置
    this.cellArray = [[0,0,0,1,1,1,1,1,1,0],
                      [0,1,1,1,2,2,2,2,1,0],
                      [1,1,3,2,4,1,1,2,1,1],
                      [1,3,3,4,2,4,2,2,5,1],
                      [1,3,3,2,4,2,4,2,1,1],
                      [1,1,1,1,1,1,2,2,1,0],
                      [0,0,0,0,0,1,1,1,1,0]];
}

  1. 页面打开时，根据地图把二维数组用图片进行背景的填充：
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    //给sokoban对象附加原型方法
    paintCells : function(){
        //0表示无，1表示隔离，2表示空地，3表示目标，4表示箱子，5表示当前位置
        for(var i=0,w=this.cellArray[0].length,h=this.cellArray.length;i<h;i++){
            for(var j=0;j<w;j++){
                this.fillCell(this.cellArray[i][j],j,i);
            }
        }
    },
    fillCell : function(type,x,y){
        var cellWidth = this.width/this.cellArray[0].length;  //一个单元的宽度
        var cellHeight = this.height/this.cellArray.length;   //一个单元的高度
        switch(type){
            case 0: this.context.save();
                    this.context.clearRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.fillStyle = '#000';
                    this.context.fillRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.restore();
                    break;
            case 1:
                    this.context.save();
                    this.context.clearRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    var ptn = this.context.createPattern(this.imgArray[0],"repeat");
                    this.context.fillStyle = ptn;
                    this.context.fillRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.restore();
                    break;
            case 2: this.context.save();
                    this.context.clearRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.fillStyle = this.context.createPattern(this.imgArray[1],"repeat");
                    this.context.fillRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.restore();
                    break;
            case 3: this.context.save();
                    this.context.clearRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.fillStyle = this.context.createPattern(this.imgArray[1],"repeat");
                    this.context.fillRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.drawImage(this.imgArray[2],cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.restore();
                    break;
            case 4: this.context.save();
                    this.context.clearRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.fillStyle = this.context.createPattern(this.imgArray[1],"repeat");
                    this.context.fillRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.drawImage(this.imgArray[3],cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.restore();
                    break;
            case 5: this.context.save();
                    this.context.clearRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.fillStyle = this.context.createPattern(this.imgArray[1],"repeat");
                    this.context.fillRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.drawImage(this.imgArray[4],cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.restore();
                    break;
        }
    },

3、监听按键事件window.onkeydown ,其中我们的重点是上下左右按键，分别对应的unicode编码为：
←：37
↑：38
→：39
↓：40

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
window.onkeydown = function(e){
    e.preventDefault();
    that.action(e.keyCode);  //处理按键值
};
//处理上下左右的逻辑
    action : function(direction){
        var nextLoc = {};
        switch(direction){
            case 38:
                nextLoc.type = this.cellArray[this.curLoc.y-1][this.curLoc.x];
                nextLoc.x = this.curLoc.x;
                nextLoc.y = this.curLoc.y-1;
                if( nextLoc.type == 2 || nextLoc.type == 3){
                    this.move(nextLoc); //更新移动后的位置
                    this.paintCells();  //重新绘制地图
                }else if( nextLoc.type == 4 && this.cellArray[this.curLoc.y-2][this.curLoc.x] == 2 || this.cellArray[this.curLoc.y-2][this.curLoc.x] == 3){
                    this.pushBox(nextLoc.x,nextLoc.y-1);
                    this.move(nextLoc);
                    this.paintCells();
                }
                this.checkResult();
                break;
            case 40:
                nextLoc.type = this.cellArray[this.curLoc.y+1][this.curLoc.x];
                nextLoc.x = this.curLoc.x;
                nextLoc.y = this.curLoc.y+1;
                if( nextLoc.type == 2 || nextLoc.type == 3){
                    this.move(nextLoc);
                    this.paintCells();
                }else if( nextLoc.type == 4 && this.cellArray[this.curLoc.y+2][this.curLoc.x] == 2 || this.cellArray[this.curLoc.y+2][this.curLoc.x] == 3){
                    this.pushBox(nextLoc.x,nextLoc.y+1);
                    this.move(nextLoc);
                    this.paintCells();
                }
                this.checkResult();
                break;
            case 37:
                nextLoc.type = this.cellArray[this.curLoc.y][this.curLoc.x-1];
                nextLoc.x = this.curLoc.x-1;
                nextLoc.y = this.curLoc.y;
                if( nextLoc.type == 2 || nextLoc.type == 3){
                    this.move(nextLoc);
                    this.paintCells();
                }else if( nextLoc.type == 4 && this.cellArray[this.curLoc.y][this.curLoc.x-2] == 2 || this.cellArray[this.curLoc.y][this.curLoc.x-2] == 3){
                    this.pushBox(nextLoc.x-1,nextLoc.y);
                    this.move(nextLoc);
                    this.paintCells();
                }
                this.checkResult();
                break;
            case 39:
                nextLoc.type = this.cellArray[this.curLoc.y][this.curLoc.x+1];
                nextLoc.x = this.curLoc.x+1;
                nextLoc.y = this.curLoc.y;
                if( nextLoc.type == 2 || nextLoc.type == 3){
                    this.move(nextLoc);
                    this.paintCells();
                }else if( nextLoc.type == 4 && this.cellArray[this.curLoc.y][this.curLoc.x+2] == 2 || this.cellArray[this.curLoc.y][this.curLoc.x+2] == 3){
                    this.pushBox(nextLoc.x+1,nextLoc.y);
                    this.move(nextLoc);
                    this.paintCells();
                }
                this.checkResult();
                break;
            default: break;
        }
    },
    pushBox : function(boxToX,boxToY){
        this.cellArray[boxToY][boxToX] = 4;
    },
    move : function(nextLoc){
        this.cellArray[nextLoc.y][nextLoc.x] = 5;
        this.cellArray[this.curLoc.y][this.curLoc.x] = 2;
        for(var i = this.targetLoc.length -1;  i>=0; i--){
            if(this.targetLoc[i].x == this.curLoc.x && this.targetLoc[i].y == this.curLoc.y){
                this.cellArray[this.curLoc.y][this.curLoc.x] = 3;
            }
        }
        this.curLoc.y = nextLoc.y;
        this.curLoc.x = nextLoc.x;
    },

  1. 检测我们的通关条件，提示“通关”！
    所有的应该被添位置，都有箱子了，就通关啦

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    checkResult : function(){
            var done = 0, total = this.targetLoc.length;
            for(var i = total -1;  i>=0; i--){
                if(this.cellArray[this.targetLoc[i].y][this.targetLoc[i].x] == 4){
                    done++;
                }
            }
            if( done == total ){
                window.onkeydown = null;
                this.context.save();
                this.context.font="40px Verdana";
                this.context.textAlign = "center";
                // 创建渐变
                var gradient=this.context.createLinearGradient(0,0,this.width,this.height);
                gradient.addColorStop("0.3","red");
                gradient.addColorStop("0.5","blue");
                gradient.addColorStop("0.7","yellow");
                // 用渐变填色
                this.context.fillStyle = gradient;
                this.context.fillText("Congratulations!!",this.width/2,this.height/2);
                this.context.restore();
            }
        },

  2. 重置地图
    如果用户发现走到了死胡同，这时候需要重置地图。

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    restart : function(){
        this.curLoc = {x:8,y:3};
        //0表示无，1表示隔离，2表示空地，3表示目标，4表示箱子，5表示当前位置
        this.cellArray = [[0,0,0,1,1,1,1,1,1,0],
                          [0,1,1,1,2,2,2,2,1,0],
                          [1,1,3,2,4,1,1,2,1,1],
                          [1,3,3,4,2,4,2,2,5,1],
                          [1,3,3,2,4,2,4,2,1,1],
                          [1,1,1,1,1,1,2,2,1,0],
                          [0,0,0,0,0,1,1,1,1,0]];
        sokoban.init();
    }

整体实现

以下，献上完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8">
    <title>推箱子</title>
</head>
<body>
    <canvas id="boxCanvas" width="500px" height="350px"></canvas>
    <div style="width:500px;text-align:center;margin-top:10px">
        <button style="width:90px;height:32px;" onclick="restartGame();">Restart</button>
    </div>
</body>
<script type="text/javascript">
function restartGame(){
    sokoban.restart();
}

var Sokoban = function(boxContext,width,height) {
    this.context = boxContext;
    this.width = width;
    this.height = height;
    this.curLoc = {x:8,y:3};
    this.targetLoc = [{x:1,y:3},{x:1,y:4},{x:2,y:2},{x:2,y:3},{x:2,y:4}];
    this.imgArray = [new Image(),new Image(),new Image(),new Image(),new Image()];
    //0表示无，1表示隔离，2表示空地，3表示目标，4表示箱子，5表示当前位置
    this.cellArray = [[0,0,0,1,1,1,1,1,1,0],
                      [0,1,1,1,2,2,2,2,1,0],
                      [1,1,3,2,4,1,1,2,1,1],
                      [1,3,3,4,2,4,2,2,5,1],
                      [1,3,3,2,4,2,4,2,1,1],
                      [1,1,1,1,1,1,2,2,1,0],
                      [0,0,0,0,0,1,1,1,1,0]];
}

Sokoban.prototype = {
    fillCell : function(type,x,y){
        var cellWidth = this.width/this.cellArray[0].length;
        var cellHeight = this.height/this.cellArray.length;
        switch(type){
            case 0: this.context.save();
                    this.context.clearRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.fillStyle = '#000';
                    this.context.fillRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.restore();
                    break;
            case 1:
                    this.context.save();
                    this.context.clearRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    var ptn = this.context.createPattern(this.imgArray[0],"repeat");
                    this.context.fillStyle = ptn;
                    this.context.fillRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.restore();
                    break;
            case 2: this.context.save();
                    this.context.clearRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.fillStyle = this.context.createPattern(this.imgArray[1],"repeat");
                    this.context.fillRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.restore();
                    break;
            case 3: this.context.save();
                    this.context.clearRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.fillStyle = this.context.createPattern(this.imgArray[1],"repeat");
                    this.context.fillRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.drawImage(this.imgArray[2],cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.restore();
                    break;
            case 4: this.context.save();
                    this.context.clearRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.fillStyle = this.context.createPattern(this.imgArray[1],"repeat");
                    this.context.fillRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.drawImage(this.imgArray[3],cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.restore();
                    break;
            case 5: this.context.save();
                    this.context.clearRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.fillStyle = this.context.createPattern(this.imgArray[1],"repeat");
                    this.context.fillRect(cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.drawImage(this.imgArray[4],cellWidth*x,cellHeight*y,cellWidth,cellHeight);
                    this.context.restore();
                    break;
        }
    },
    prepareImage : function(callback){
        var imgSrcArray = ['images/1.png','images/2.png','images/3.png','images/4.png','images/5.png'];
        var that = this;
        for(var i=0,len=this.imgArray.length,loading=len-1;i<5;i++){
            this.imgArray[i].src = imgSrcArray[i];
            this.imgArray[i].onload = function(){
                len--;
                if(!len){
                    callback.call(that);
                    window.onkeydown = function(e){
                        e.preventDefault();
                        that.action(e.keyCode);
                    };
                }
            };
        }
    },
    paintCells : function(){
        //0表示无，1表示隔离，2表示空地，3表示目标，4表示箱子，5表示当前位置
        for(var i=0,w=this.cellArray[0].length,h=this.cellArray.length;i<h;i++){
            for(var j=0;j<w;j++){
                this.fillCell(this.cellArray[i][j],j,i);
            }
        }
    },
    init : function(){
        this.prepareImage(this.paintCells);
    },
    action : function(direction){
        var nextLoc = {};
        switch(direction){
            case 38:
                nextLoc.type = this.cellArray[this.curLoc.y-1][this.curLoc.x];
                nextLoc.x = this.curLoc.x;
                nextLoc.y = this.curLoc.y-1;
                if( nextLoc.type == 2 || nextLoc.type == 3){
                    this.move(nextLoc);
                    this.paintCells();
                }else if( nextLoc.type == 4 && this.cellArray[this.curLoc.y-2][this.curLoc.x] == 2 || this.cellArray[this.curLoc.y-2][this.curLoc.x] == 3){
                    this.pushBox(nextLoc.x,nextLoc.y-1);
                    this.move(nextLoc);
                    this.paintCells();
                }
                this.checkResult();
                break;
            case 40:
                nextLoc.type = this.cellArray[this.curLoc.y+1][this.curLoc.x];
                nextLoc.x = this.curLoc.x;
                nextLoc.y = this.curLoc.y+1;
                if( nextLoc.type == 2 || nextLoc.type == 3){
                    this.move(nextLoc);
                    this.paintCells();
                }else if( nextLoc.type == 4 && this.cellArray[this.curLoc.y+2][this.curLoc.x] == 2 || this.cellArray[this.curLoc.y+2][this.curLoc.x] == 3){
                    this.pushBox(nextLoc.x,nextLoc.y+1);
                    this.move(nextLoc);
                    this.paintCells();
                }
                this.checkResult();
                break;
            case 37:
                nextLoc.type = this.cellArray[this.curLoc.y][this.curLoc.x-1];
                nextLoc.x = this.curLoc.x-1;
                nextLoc.y = this.curLoc.y;
                if( nextLoc.type == 2 || nextLoc.type == 3){
                    this.move(nextLoc);
                    this.paintCells();
                }else if( nextLoc.type == 4 && this.cellArray[this.curLoc.y][this.curLoc.x-2] == 2 || this.cellArray[this.curLoc.y][this.curLoc.x-2] == 3){
                    this.pushBox(nextLoc.x-1,nextLoc.y);
                    this.move(nextLoc);
                    this.paintCells();
                }
                this.checkResult();
                break;
            case 39:
                nextLoc.type = this.cellArray[this.curLoc.y][this.curLoc.x+1];
                nextLoc.x = this.curLoc.x+1;
                nextLoc.y = this.curLoc.y;
                if( nextLoc.type == 2 || nextLoc.type == 3){
                    this.move(nextLoc);
                    this.paintCells();
                }else if( nextLoc.type == 4 && this.cellArray[this.curLoc.y][this.curLoc.x+2] == 2 || this.cellArray[this.curLoc.y][this.curLoc.x+2] == 3){
                    this.pushBox(nextLoc.x+1,nextLoc.y);
                    this.move(nextLoc);
                    this.paintCells();
                }
                this.checkResult();
                break;
            default: break;
        }
    },
    pushBox : function(boxToX,boxToY){
        this.cellArray[boxToY][boxToX] = 4;
    },
    move : function(nextLoc){
        this.cellArray[nextLoc.y][nextLoc.x] = 5;
        this.cellArray[this.curLoc.y][this.curLoc.x] = 2;
        for(var i = this.targetLoc.length -1;  i>=0; i--){
            if(this.targetLoc[i].x == this.curLoc.x && this.targetLoc[i].y == this.curLoc.y){
                this.cellArray[this.curLoc.y][this.curLoc.x] = 3;
            }
        }
        this.curLoc.y = nextLoc.y;
        this.curLoc.x = nextLoc.x;
    },
    checkResult : function(){
        var done = 0, total = this.targetLoc.length;
        for(var i = total -1;  i>=0; i--){
            if(this.cellArray[this.targetLoc[i].y][this.targetLoc[i].x] == 4){
                done++;
            }
        }
        if( done == total ){
            window.onkeydown = null;
            this.context.save();
            this.context.font="40px Verdana";
            this.context.textAlign = "center";
            // 创建渐变
            var gradient=this.context.createLinearGradient(0,0,this.width,this.height);
            gradient.addColorStop("0.3","red");
            gradient.addColorStop("0.5","blue");
            gradient.addColorStop("0.7","yellow");
            // 用渐变填色
            this.context.fillStyle = gradient;
            this.context.fillText("Congratulations!!",this.width/2,this.height/2);
            this.context.restore();
        }
    },
    restart : function(){
        this.curLoc = {x:8,y:3};
        //0表示无，1表示隔离，2表示空地，3表示目标，4表示箱子，5表示当前位置
        this.cellArray = [[0,0,0,1,1,1,1,1,1,0],
                          [0,1,1,1,2,2,2,2,1,0],
                          [1,1,3,2,4,1,1,2,1,1],
                          [1,3,3,4,2,4,2,2,5,1],
                          [1,3,3,2,4,2,4,2,1,1],
                          [1,1,1,1,1,1,2,2,1,0],
                          [0,0,0,0,0,1,1,1,1,0]];
        sokoban.init();
    }
};

var boxCanvas = document.getElementById("boxCanvas");
var sokoban = new Sokoban(boxCanvas.getContext('2d'),boxCanvas.width,boxCanvas.height);
sokoban.init();


</script>
</html>

你学会了吗？
